Stoßdämpfer 3 of 3

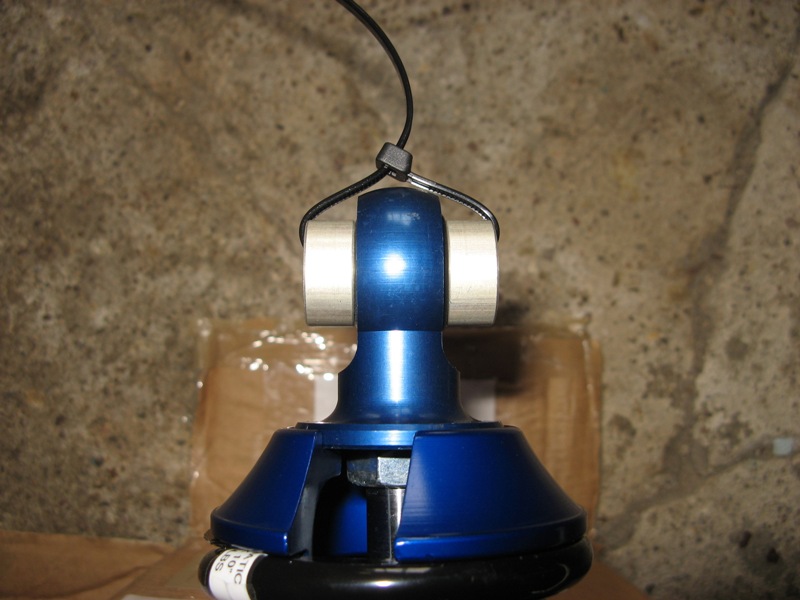

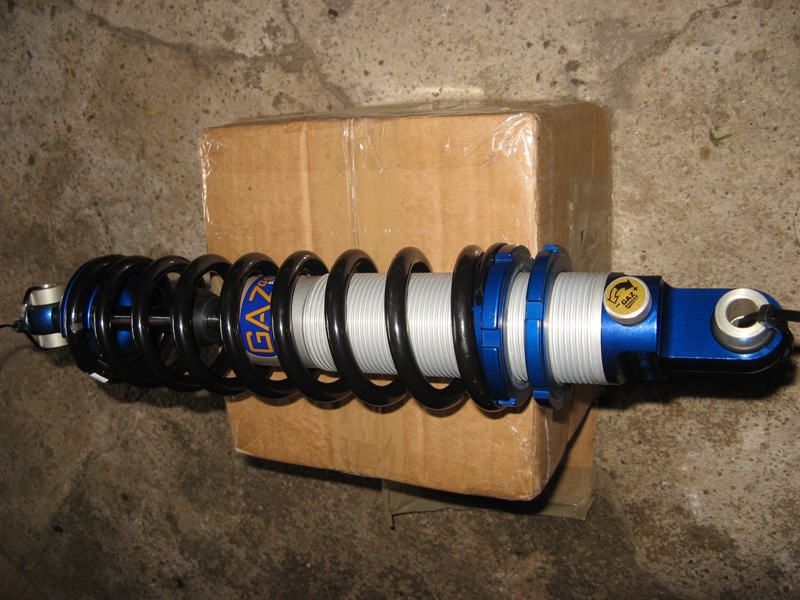

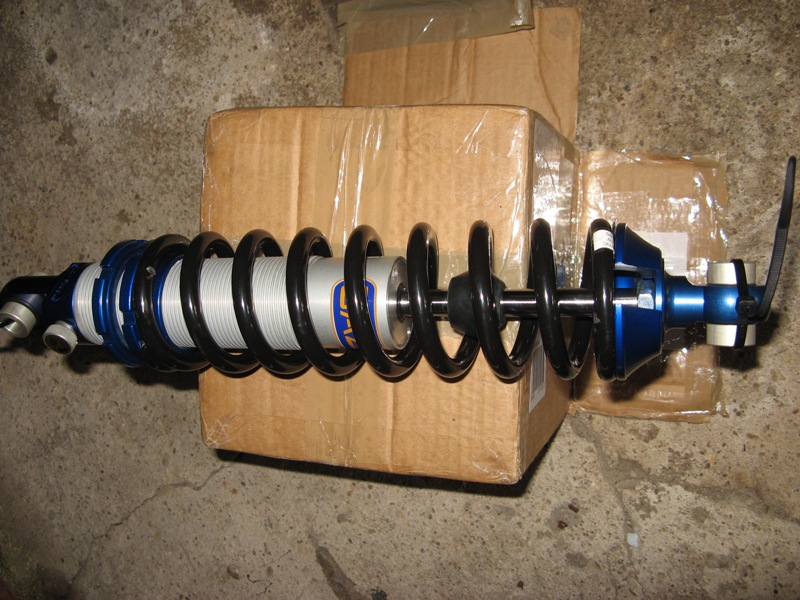

GAZ Stoßdämpfer vorne
2013 wurden die vorderen Stoßdämpfer durch GAZ Gold ersetzt
GP8-2281
GP7-2280
These dampers are for a TVR Griffith, they are 16” open & have a stroke of 5 ¼”.
The 2280 has spring seats & top collets to take 2 ½” id springs & the 2281 takes 2 ¾” springs.
The only difference in our dampers is the bush dimensions as the standard TVR bushes are ½” id x 1 ½” wide &
the ones on the drawings you have sent are 1 ¼” wide but we can bush them to suit.
In steel they will cost you £85.00 each & in ali £100.00 each, carriage will be £25.00, all + vat.
This TVR used 3 different sizes of springs 2 ¼” 2 ½” & 2 ¾” & we always advise people that if
they are going to change the dampers & springs then go for the 2 ¼” springs as they are more
readily available now than the other sizes. We can get you the larger id springs but they are
£26.50 each & we will have to get them made where as the 2 ¼” we have a large stock as do most suppliers.
In my TVR:
The 2,25 " springs with 225 lbs and a high of 14"
